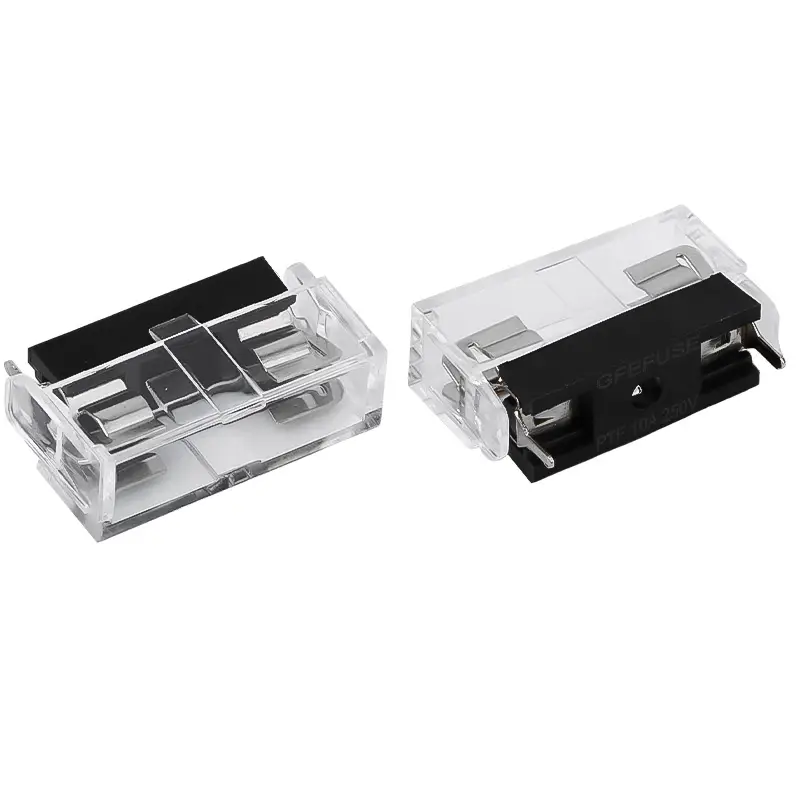

Cartridge Fuse Holder Technical Selection Guide
Introduction to Cartridge Fuse Holders
Fuse holders are critical circuit protection components that secure cartridge fuses, maintain reliable electrical contact, and provide insulation between live components and surrounding environments. Among the most widely used form factors in industrial and consumer electronics are 5×20 mm and 6×30 mm configurations, available in both PCB mount and panel mount mounting styles.
Selecting the correct fuse holder is just as important as selecting the fuse itself. A mismatched holder can cause excessive contact resistance, overheating, premature fuse failure, and safety hazards. This guide provides engineers, procurement specialists, and design teams with a complete technical framework for evaluating and selecting cartridge fuse holders based on dimensional standards, electrical ratings, mounting requirements, and application-specific constraints.
5×20 vs 6×30 Fuse Holder: Dimensional and Electrical Comparison
The two most common miniature cartridge fuse sizes globally are 5×20 mm and 6×30 mm. Each has distinct electrical capabilities and typical use cases.
5×20 Fuse Holder Technical Specifications
The 5×20 fuse holder accommodates standard 5 mm diameter × 20 mm length cartridge fuses, the most prevalent size in low-to-medium power electronic equipment.
| Parameter | Typical Value Range |
|---|---|
| Fuse compatibility | 5×20 mm glass / ceramic cartridge fuses |
| Rated voltage | 250 VAC (standard); up to 600 VAC (high-voltage variants) |
| Rated current | 0.5 A – 20 A (standard series certified up to 10 A per IEC 60127-6) |
| Accepted power dissipation | 1.6 W – 2.5 W (per IEC 60127-6) |
| Operating temperature | -55°C to +85°C |
| Contact material | Tin-plated brass, beryllium copper, or nickel-plated copper alloy |
| Housing material | PBT, PA66, Bakelite, thermoplastic (UL 94 V-0 rated) |
| Key compliance | IEC 60127-2, UL 4248-1, TUV, CQC, CE, RoHS |
Key characteristics: Compact footprint, fast-response fuse compatibility, and widespread adoption in consumer and industrial electronics. The 5×20 format is the European standard for appliance-level protection and is recognized under IEC 60127-2.
6×30 Fuse Holder Technical Specifications
The 6×30 fuse holder accepts 6 mm diameter × 30 mm length fuses, offering higher current handling and greater thermal capacity than the 5×20 format.
| Parameter | Typical Value Range |
|---|---|
| Fuse compatibility | 6×30 mm glass / ceramic cartridge fuses |
| Rated voltage | 250 VAC – 600 VAC / VDC |
| Rated current | 1 A – 30 A (some high-current variants up to 40 A) |
| Accepted power dissipation | 4 W (per IEC 60127-6) |
| Operating temperature | -40°C to +105°C (high-temperature variants available) |
| Contact material | Tin-plated copper alloy; silver-plated for high-current models |
| Housing material | PBT thermoplastic, ceramic, or Bakelite (UL 94 V-0 rated) |
| Key compliance | UL 4248-1, IEC 60127, CSA C22.2 No. 4248.1, CE |
Key characteristics: Higher current capacity, superior thermal dissipation, and suitability for inductive loads and inrush-current applications. The larger body allows for slower-blow fuse elements that handle motor startup and transformer magnetization currents.
Comparative Analysis: When to Use 5×20 vs 6×30
| Selection Factor | 5×20 Fuse Holder | 6×30 Fuse Holder |
|---|---|---|
| Optimal current range | Below 10 A preferred | 10 A – 30 A applications |
| PCB space requirement | Minimal footprint, ideal for dense boards | Larger footprint, designed for higher power boards |
| Fuse response speed | Fast-acting / ultra-fast fuses | Slow-blow / time-delay fuses |
| Typical load type | Resistive loads, electronic control circuits | Inductive loads, motors, transformers, power supplies |
| Standard prevalence | IEC standard, dominant in European equipment | Industrial standard, common in North American and marine equipment |
| Unit cost | Lower unit cost | Slightly higher per unit |
Never install a 6×30 fuse in a 5×20 holder or vice versa—physical incompatibility creates dangerous contact resistance and arcing risks.
Types of PCB Mount Fuse Holders
1.PCB Fuse Clips The most economical option, consisting of two spring-steel clips soldered to the board. Provides electrical insulation and mechanical retention of the fuse, better resistance to vibration and dust. Widely used in industrial power supplies and consumer appliances.
2.Surface-Mount (SMT) PCB Holders Designed for reflow soldering, ideal for automated high-volume manufacturing. Ultra-compact profile for high-density PCB designs, common in consumer electronics and small power adapters
Panel Fuse Holder: Equipment-Level Accessible Protection
A panel fuse holder mounts to the exterior wall of equipment chassis, control panels, or enclosures.
Common Panel Mount Styles
1.Screw-in Panel Holders Threaded body with a locknut, secured through a drilled panel hole. Provides robust mechanical retention and basic IP40 dust protection. Standard for industrial control panels and power distribution units.
2.Snap-in Panel Holders Spring-tab design for tool-free installation into panel cutouts. Fast assembly for high-volume production, common in consumer electronics and small appliances.
3.Waterproof / Sealed Panel Holders Equipped with rubber gaskets and sealed caps, rated IP65 or higher. Designed for outdoor equipment, marine applications, and harsh industrial environments with dust or moisture exposure.
Mounting Method Selection Guide
| Selection Criteria | PCB Fuse Holder | Panel Fuse Holder |
|---|---|---|
| Primary function | On-board circuit protection | User-accessible fuse replacement |
| Access during operation | Requires enclosure disassembly | Accessible from outside equipment |
| Environmental protection | Ranges from minimal (clips) to enclosed | Ranges from basic to IP67 sealed |
| Vibration resistance | Good (fully soldered) | Moderate (depends on locking mechanism) |
| Typical application | Internal PCB protection in power supplies, control boards | External access for equipment maintenance, field service |
| BOM cost | Lower | Higher (additional hardware, sealing components) |
Key Compliance & Certification Considerations
For global market deployment, cartridge fuse holders must meet regional safety standards. GFEFUSE cartridge fuse holders are certified to major international standards:
- UL 4248-1 / CSA C22.2 No. 4248.1: North American safety standard for fuse holders
- TUV SUD (EN 60127-6): European standard for miniature fuse holders
- CQC (GB 9364.1 / GB/T 9364.6): China compulsory certification for circuit protection components
- CE, RoHS, REACH: EU environmental and safety compliance
All products undergo 100% final inspection before shipment, with manufacturing facilities certified to ISO 9001 quality management standards.
Application-Specific Selection Recommendations
| Industry / Application | Recommended Fuse Size | Recommended Mounting | Rationale |
|---|---|---|---|
| Consumer electronics, small adapters | 5×20 mm | SMT / THT PCB | Low current, space-constrained board-level protection |
| Industrial power supplies, converters | 5×20 mm / 6×30 mm | THT PCB | Mix of control and power circuits, board-integrated protection |
| EV charging stations, energy storage | 6×30 mm | Panel mount + PCB | High current DC circuits, field-serviceable access |
| Solar PV systems | 6×30 mm | Waterproof panel mount | Outdoor deployment, high DC voltage, sealed enclosure requirement |
| Automotive electronics | 5×20 mm | PCB / panel mount | Vibration-resistant, compact form factor for vehicle control units |
| Marine / heavy industrial | 6×30 mm | Sealed panel mount | Harsh environment, high inrush currents, inductive loads |
GFEFUSE Cartridge Fuse Holder Portfolio
GFEFUSE (Dongguan Gongfu Electronics Co., Ltd.) offers a full range of 5×20 mm and 6×30 mm cartridge fuse holders in both PCB and panel mount configurations. Standard product families include PTF, OP, R3, H3, FH, GF, MF, BLX, and 153 series, all rated 250V / 10A with 2.5W power dissipation per IEC 60127-6.
Core Product Advantages
- Manufacturing capacity: Automated production lines with monthly output over 2 million pieces
- Customization support: Non-standard ratings, materials, and mounting configurations available
- Global delivery: Standard products in stock; custom orders delivered in 15–25 working days
- Technical support: End-to-end support from product selection to application integration
