Complete circuit protection solutions — from automotive blade fuses to 1500V DC high-voltage fuses for EV and energy storage.

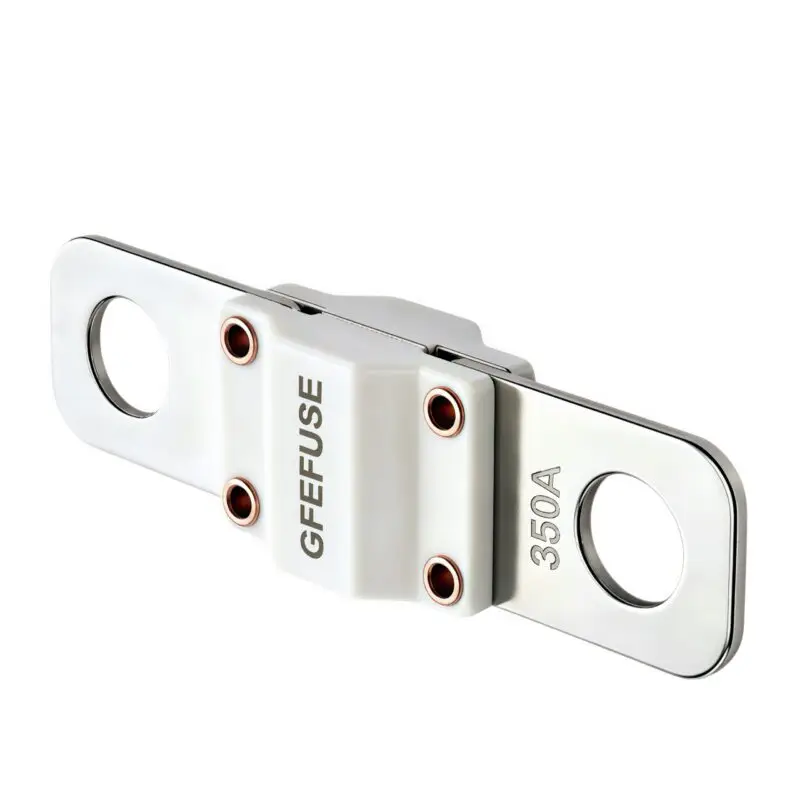

ANL Bolt-Down Fuse 300A
GFEVT High-Speed DC Fuse 400A
ESS Energy Storage Fuse 250A
MIDI Fuse Holder Kit 100A
GFEVT High-Speed DC Fuse 200A

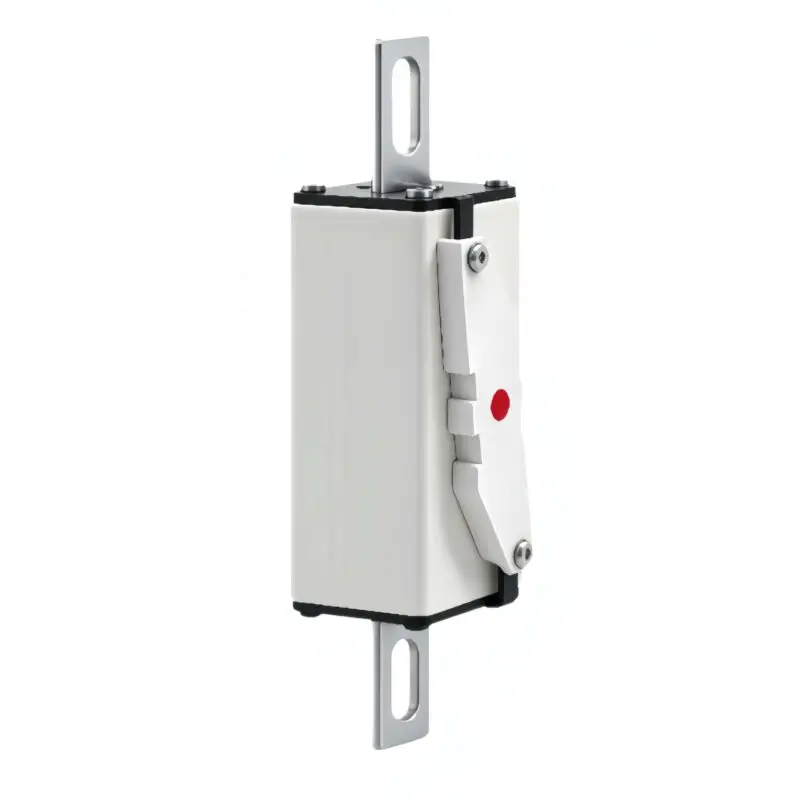

PV String Fuse 15A 1000V DC
Square High-Speed Fuse 500A
BS88 Industrial Fuse 80A
PCB Mount Fuse Holder 30A
ESS BESS Fuse 400A 1500V
North American Semi Fuse 200A
ATO Blade Fuse 15A (100pcs)
GFEVT High-Speed DC Fuse 400A
The GFEVT series high-speed DC fuse is engineered for electric vehicle powertrains, battery energy storage systems (BESS), and DC fast charging stations. With a 1500V DC rating and 50kA breaking capacity, it provides reliable overcurrent protection where fast interruption is critical.
| Parameter | Value |
|---|---|
| Model Number | GFEVT1500-400-59ES |
| Rated Voltage | 1500V DC |
| Rated Current | 400A |
| Breaking Capacity | 50kA @ 1500V DC |
| Interrupting Type | Fast-acting (aR) |
| Standard Compliance | UL 248-13, CQC |
| Operating Temperature | -40°C to +85°C |
| Terminal Type | Bolt-down (M8) |
| Body Material | High-temperature PPS |
| Fuse Element | Pure silver |
| Approvals | UL Listed, CE, RoHS |
| Weight | 185g |
Fast Interruption
Silver element design ensures ultra-fast clearing within milliseconds, protecting sensitive power electronics from fault currents.
High Breaking Capacity
50kA interrupting rating at 1500V DC handles the most demanding short-circuit conditions in EV and BESS applications.
Compact Design
Space-saving square body with bolt-down terminals fits standard fuse holders, ideal for compact power distribution units.
Temperature Stable
PPS high-temperature housing and calibrated silver element maintain consistent performance from -40°C to +85°C.
UL Certified
Full UL 248-13 listing with complete test reports. CE and RoHS compliant for global market access.
Custom OEM/ODM
In-house R&D supports custom ratings, markings, and packaging. Private label available for volume partners.
Electric Vehicles
Battery Storage (BESS)
DC Fast Charging
Industrial Drives
PV Inverters
UPS Systems
Power Distribution
Custom Solutions
Body: 76 × 32 × 32mm | Terminal spacing: 54mm | Mounting holes: M8 (2×) | Weight: 185g
* Custom dimensions available for OEM orders. Contact engineering for custom specifications.
Need a Custom Fuse Specification?
Our engineering team can design custom fuses for your specific voltage, current, and mounting requirements.
