GFEV(C200C) Inline Mini Car Bolt‑On Fuse Holder | 200A Max DC 32V / 58V

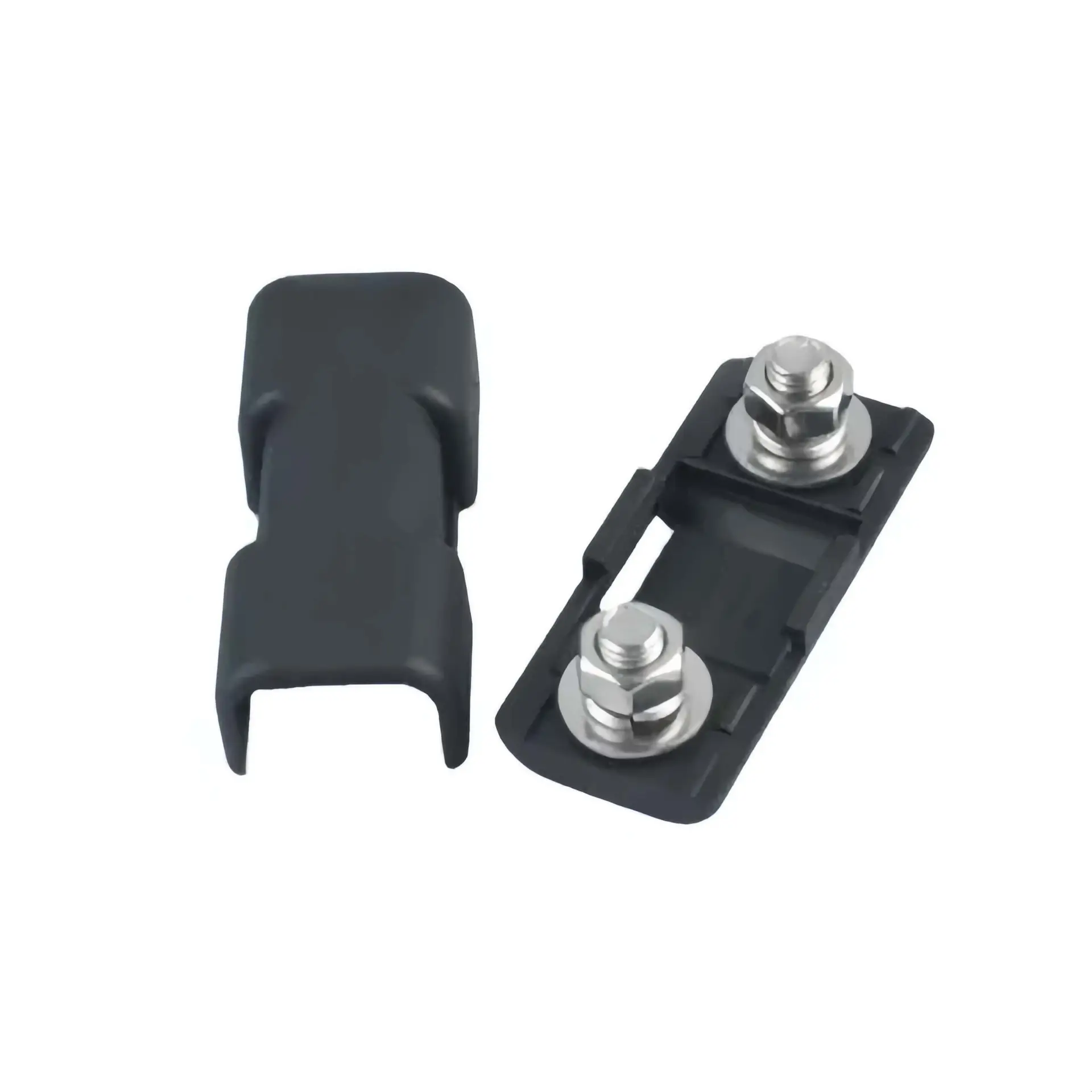

The GFEV(C200C) Inline Mini Car Bolt‑On Fuse Holder is a compact in‑line bolt‑on fuse holder engineered for GFEFUSE® ANL‑C series small flat fuses. First of all, it adopts glass‑filled nylon base and cover with UL‑94V‑0 flame‑retardant grade. Meanwhile, zinc‑plated M5 bolts deliver 5Nm torque rating for stable wire termination. In addition, this inline fuse block supports up to 200A max fuse rating and accepts DC 32V / 58V systems, so it fits automotive, battery and mobile‑device internal interconnection protection. It features small footprint and enables quick fuse replacement during maintenance work.

Related products: Fuse Holders & ANL‑C Series Small Flat Fuse

Reference standard: IEC International Electrical Component Standard

Key Features

• Inline Mini Compact Design: It adopts space‑saving inline construction. As a result, it suits narrow internal wiring layouts for vehicle and power‑equipment assemblies.
• Flame‑Retardant Glass‑Filled Nylon Housing: Both base and cover use UL‑94V‑0 glass‑filled nylon material. Furthermore, this material maintains stable performance across wide temperature variation.
• Robust M5 Termination Hardware: It is equipped with zinc‑plated M5 bolts with 5Nm recommended torque rating. Thus, users can achieve reliable clamping for heavy‑gauge cables.
• High Cable Compatibility: It accepts wire cross‑section up to 20mm² for high‑current cable connection.
• Broad Working Temperature: It operates normally from ‑40℃ to +125℃ for harsh automotive and mobile‑power environments.
• User‑Friendly Operation: It brings convenient wire connection and simple fuse replacement for on‑site maintenance.
• Important Notice: Mould dimensions are subject to change without prior notification.

GFEV(C200C) Technical Specifications

Typical Applications

You can deploy this GFEV(C200C) inline bolt‑on fuse holder for multiple high‑current DC protection tasks. For example, it serves automotive wiring systems and battery power assemblies. Besides battery‑related scenarios, it works for power‑supply units. What’s more, it applies to internal interconnection circuits of mobile devices requiring compact inline fuse protection.

Why Buy From Us

We are a professional Chinese manufacturer of inline bolt‑on fuse holders and matching ANL‑C series fuses for global B2B buyers. First, we supply physical samples for customer evaluation and pre‑production verification. Second, we accept OEM & ODM custom requirements for housing or hardware modification. Before shipment, our QC team performs complete electrical and mechanical inspection for every batch. Finally, we keep stable lead‑time for large‑volume bulk‑order demands.

👉 GFEV(C200C) Inline mini car bolt-on fuse holder

FAQ

1: Which fuse fits GFEV(C200C) inline fuse holder?
A: It matches GFEFUSE ANL‑C series small flat fuses with maximum 200A rating.

2: What is the maximum wire size supported by GFEV(C200C)?
A: This inline holder supports max wire cross‑section up to 20mm².

3: What torque should I apply for M5 bolts?
A: Recommended torque value for M5 bolt is 5Nm to secure cable terminals properly.
