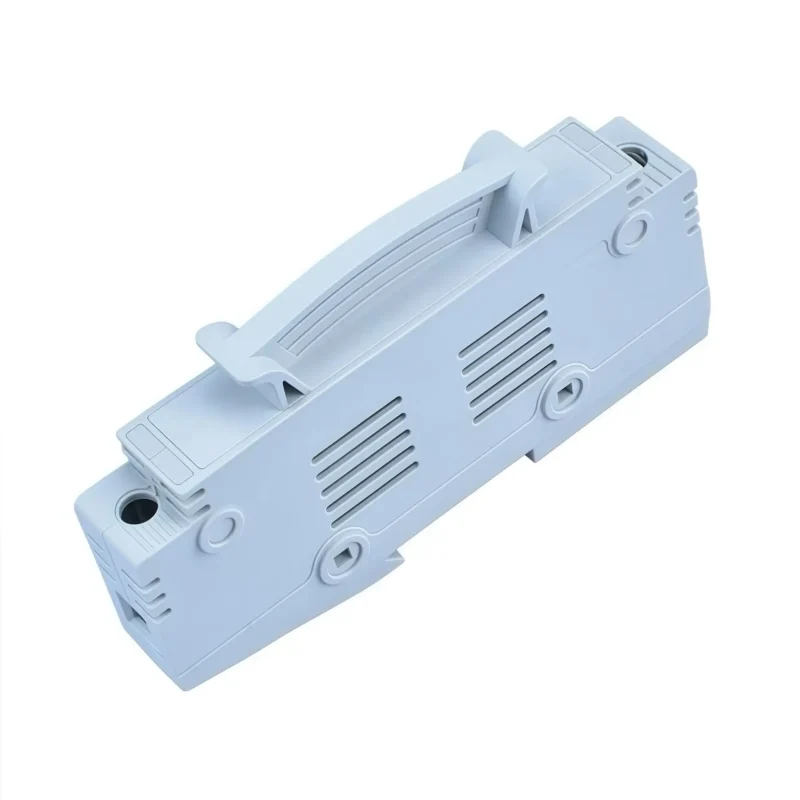

GFEV(H15) Photovoltaic Fuse Base
Product Overview
GFEV(H15) is a high-voltage photovoltaic fuse base developed by EssFuse, serving as professional solar fuse accessories for modern large-scale PV power systems. First of all, this fuse holder supports two mainstream high-voltage fuse sizes including 10×85mm and 14×85mm cylindrical Photovoltaic Fuse | DC Solar Fuse for PV System, and it withstands up to 35A rated current and 1500V DC high voltage. Therefore, it perfectly meets the protection requirements of high-voltage solar power stations and energy storage DC systems.
Furthermore, GFEV(H15) adopts dual installation and wiring structures with standard DIN guide rail mounting and reliable bolt connection terminals. This dual-structure design greatly improves installation efficiency and wiring stability for combiner boxes and DC distribution cabinets. In addition, the product fully complies with ROHS and REACH environmental standards, so it can adapt to global solar project export standards and long-term outdoor industrial use.
Key Specifications
| Item | Parameter |
|---|---|
| Model | GFEV(H15) |
| Product Type | Photovoltaic Fuse Base / Fuse Holder (Fuse Accessories) |
| Compatible Fuse Size | 10×85mm / 14×85mm PV cylindrical fuse |
| Rated Current | Max 35A |
| Rated Voltage | 1500V DC |
| Installation Method | DIN Guide Rail Mount |
| Wiring Method | Bolt Connection |
| Product Compliance | ROHS, REACH |
| Application | 1500V DC PV power station, solar combiner box, energy storage system |
Note: GFEV(H15) is a standalone fuse base. PV fuses are sold separately. Please match 10×85mm or 14×85mm gPV fuses according to actual system current and voltage.
Core Features
- 1500V High-Voltage Compatibility: This fuse base supports 1500V DC high voltage and 35A maximum current, so it fully adapts to new-generation high-voltage photovoltaic power stations.
- Dual Fuse Size Adaptation: It fits both 10×85mm and 14×85mm standard PV fuses. For this reason, it offers strong compatibility for different project fuse specifications.
- DIN Rail Quick Installation: The standard guide rail structure allows fast clamping installation inside electrical cabinets. It saves assembly time and simplifies overall circuit layout.
- Stable Bolt Connection: Bolt-type wiring terminals ensure firm cable connection, low contact resistance and excellent vibration resistance for long-term outdoor operation.
- Global Environmental Certification: The product strictly follows ROHS and REACH standards. Thus, it meets EU and international green export requirements for solar energy equipment.
- High Safety Insulation Design: It adopts high-temperature and arc-resistant insulating materials to ensure stable performance under high DC voltage working conditions.
Application Scenarios
- 1500V DC large-scale ground photovoltaic power stations
- Solar combiner box and DC distribution cabinet circuit protection
- Industrial and commercial rooftop high-voltage solar systems
- Solar energy storage cabinet DC side overcurrent protection
- New energy off-grid power generation and photovoltaic power supply equipment
FAQ
1: What fuse sizes fit GFEV(H15)?
A: GFEV(H15) supports two mainstream high-voltage PV fuse sizes: 10×85mm and 14×85mm, with a maximum rated current of 35A and 1500V DC voltage.
2: Is GFEV(H15) suitable for 1500V solar power stations?
A: Yes. This fuse base is specially designed for 1500V DC high-voltage photovoltaic systems. It provides reliable overcurrent and short-circuit protection for high-voltage PV combiner boxes.
3: Does this product include photovoltaic fuses?
A: No. GFEV(H15) is only a photovoltaic fuse base (fuse holder). Users need to purchase matching 10×85mm/14×85mm PV fuses separately.
4: What installation method does GFEV(H15) adopt?
A: It uses standard DIN guide rail installation for quick fixing. Meanwhile, it adopts bolt connection for cable wiring to ensure stable and safe electrical connection.
5: Does GFEV(H15) support export projects?
A: Absolutely yes. The product complies with ROHS and REACH environmental standards, so it fully supports export to Europe, America and other international markets.
6: What is the advantage of 1500V PV fuse base?
A: 1500V high-voltage design reduces system wiring loss, improves power generation efficiency, and adapts to the current trend of large-capacity and high-voltage photovoltaic power stations.
