GF-382 Fuse Clip | 10x38mm Fuse Holder for 40A 1000V AC/DC
Compact fuse clip designed for 10x38mm cylindrical fuses. Eco-friendly brass/phosphor bronze, nickel plated, RoHS compliant. Factory direct from China.
Product Description

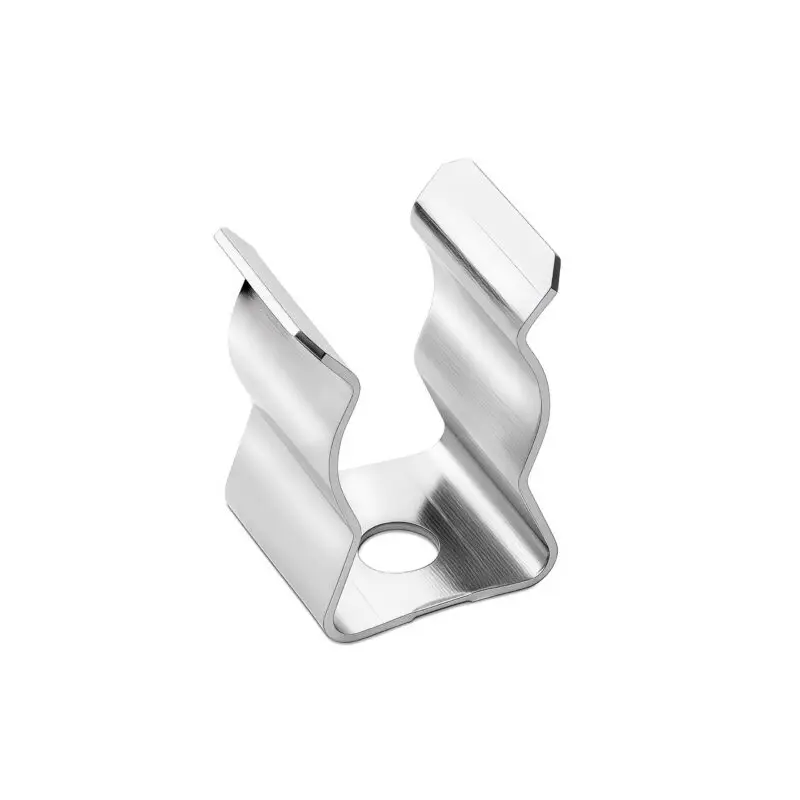

The GF-382 Fuse Clip is a compact, high-quality fuse accessory designed for 10x38mm cylindrical fuses. Moreover, it supports fuses up to 40A current rating and 1000V AC/DC voltage, making it ideal for space-constrained power electronics, industrial control systems, UPS, and circuit protection applications.
Material & Construction
Manufactured from eco-friendly brass or phosphor bronze with a thickness of 0.8mm (±0.03mm), the GF-382 ensures excellent electrical conductivity and reliable spring contact. Furthermore, the eco-friendly nickel plating provides corrosion resistance and a bright, professional finish.
Key Advantages
- Designed for 10x38mm cylindrical fuses (40A, 1000V AC/DC)
- Material: Eco-friendly brass / phosphor bronze
- Material thickness: 0.8mm (±0.03mm)
- Surface treatment: Eco-friendly nickel plating, bright finish
- RoHS compliant
- Free from burrs and scratches
- Does not fracture when flattened
- Compact size for space-constrained designs
- Unspecified tolerances: ±0.3mm
Need a Quote for GF-382?
Factory direct pricing. MOQ: 10,000 pcs. Sample order available.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Model Number | GF-382 |
| Product Category | Fuse Clip (Fuse Accessories) |
| Applicable Fuse Size | 10x38mm Cylindrical Fuse |
| Current Rating | Up to 40A |
| Voltage Rating | Up to 1000V AC/DC |
| Material | Eco-friendly Brass / Phosphor Bronze |
| Material Thickness | 0.8mm (±0.03mm) |
| Surface Treatment | Eco-friendly Nickel Plating, Bright Finish |
| RoHS Compliance | Yes |
| Quality Standard | Free from burrs and scratches; no fracture when flattened |
| Tolerance | ±0.3mm (unspecified dimensions) |
| Unit | Millimeters (mm) |
Dimensions & Drawing Parameters
| Dimension Parameter | Value (mm) | Description |
|---|---|---|
| D (Fuse Hole Diameter) | Ø4.3 | Inner diameter of fuse holding hole |
| A (Overall Height) | 18.0 | Total height of the fuse clip |
| B (Top Width) | 7.9 | Width at the top opening |
| C (Side Profile Width) | 11.8 | Width of the side profile view |
| D (Bottom Gap) | 5.1 | Gap between contact arms at bottom |
Typical Applications
The GF-382 fuse clip is widely used across multiple industries. Specifically, the table below shows the key application fields:
| Application Field | Use Case |
|---|---|
| Power Electronics | UPS systems, inverters, power supplies, battery management systems |
| Renewable Energy | Solar PV inverters, wind power converters, energy storage systems |
| Industrial Automation | PLC controllers, servo drives, motor control centers, industrial machinery |
| Electric Vehicles | EV charging stations, on-board chargers, battery protection circuits |
| Telecommunications | Base station power supplies, network equipment, telecom power systems |
| Medical Equipment | Medical device power supplies, diagnostic equipment |
Frequently Asked Questions (FAQ)
Common questions about the GF-382 fuse clip answered by our engineering team.
Fuse Compatibility & Ratings
Material & Surface
Dimensions & Quality
Ordering & Samples
About GF-382 Fuse Clip
Who We Are
The GF-382 is a premium quality fuse clip manufactured by GFEV Fuse, a professional fuse and fuse accessories manufacturer based in Dongguan, China. With years of experience in the industry, we supply high-quality fuse clips, fuse holders, and related fuse accessories to customers worldwide.
Product Engineering
Our GF-382 model is specifically engineered for 10x38mm cylindrical fuses, which are among the most widely used fuse sizes in industrial and power electronics applications. Consequently, the compact clip design ensures reliable contact pressure, excellent conductivity, and space efficiency for modern PCB layouts.
Quality Assurance
Moreover, every GF-382 fuse clip undergoes strict quality control inspection to ensure it is free from burrs and scratches, meets dimensional tolerances, and passes the flattening test without fracture. Therefore, we are committed to providing consistent, high-quality products at competitive factory-direct prices.
