ANS‑200 Mini Car Bolt‑On Fuse Holder | 30‑200A DC 12‑125V

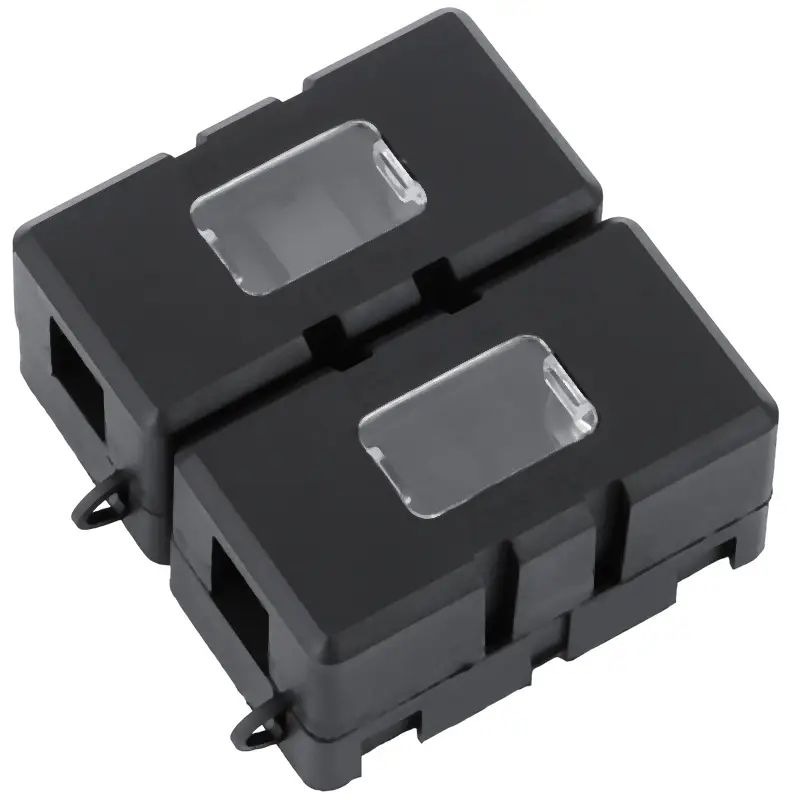

The ANS‑200 Mini Car Bolt‑On Fuse Holder is a compact bolt‑mount fuse box designed for GFEFUSE® ANL‑C series small fork‑bolt fuses. First of all, it adopts PA66 base material with UL‑94V‑0 flame‑retardant grade for reliable safety performance. Meanwhile, it uses DIN934 304 stainless‑steel fasteners to resist rust and vibration. In addition, this mini fuse holder covers DC 30‑200A current range at 12‑125V DC, so it fits automotive, communication and portable power‑supply circuit‑protection projects. This product also holds independent appearance patent for structural design.
Related products: Fuse Holders & ANL‑C Series Small Fork‑Bolt Fuse
Reference standard: IEC International Electrical Component Standard
Key Features
- Mini Compact Structure: It delivers small‑size bolt‑on installation. As a result, it saves valuable space inside limited‑layout equipment cabinets.
- Flame‑Retardant PA66 Housing: It uses high‑performance PA66 base reaching UL‑94V‑0 rating. Furthermore, this material stands up to heat stress for long‑term deployment.
- Anti‑Corrosion Fastening Parts: It equips DIN934 grade 304 stainless‑steel nuts. Thus, these hardware components prevent rust and maintain stable connection under vibration environments.
- Wide Electrical Rating: It supports DC 30A‑200A current and works within 12‑125V DC system for multiple DC‑protection scenarios.
- Exact Fuse Compatibility: It specially matches GFEFUSE ANL‑C series small fork‑bolt automotive fuses.
- Independent Appearance Patent: Our team owns exclusive appearance patent for this fuse‑holder structure.
- Important Notice: Product dimensions are subject to change without prior notification.
ANS‑200 Technical Specifications
| Model | ANS‑200 |
| Product Type | Mini car bolt‑on automotive fuse holder / fuse box |
| Compatible Fuse | GFEFUSE® ANL‑C series small fork‑bolt fuse |
| Base Housing Material | PA66, UL‑94V‑0 flame retardant |
| Fasteners | DIN934 304 stainless steel nuts |
| Rated DC Current | 30A‑200A |
| Rated DC Voltage | 12V‑125V DC |
| Patent Note | With independent product appearance patent |
| Remarks | Product dimensions subject to change without prior notice |
Typical Applications
You can deploy this ANS‑200 mini bolt‑on fuse holder in many compact DC‑protection cases. For example, it works for small‑signal processing circuits and battery‑powered equipment. Besides battery‑related projects, it serves mobile power stations and battery chargers. What’s more, it fits communication equipment and other compact devices that require mini high‑current fuse protection.
Why Buy From Us
We are a Chinese professional manufacturer of automotive bolt‑on fuses and matching fuse holders, and we provide circuit‑protection components for worldwide B2B customers. First, we offer physical samples for customer evaluation and pre‑production testing. Second, we accept OEM & ODM custom requirements for special structural or hardware adjustments. Before shipment, our QC department completes full‑range electrical and mechanical inspection for each batch. Finally, we ensure reliable lead‑time for large‑volume bulk‑purchase orders.
👉 ANS-200 Mini car bolt-on fuse holder
FAQ
1: Which fuse is compatible with ANS‑200 mini bolt‑on holder?
A: This holder is built for GFEFUSE ANL‑C series small fork‑bolt fuses within 30‑200A DC rating.
2: What material does ANS‑200 adopt for base housing?
A: It uses PA66 plastic base with UL‑94V‑0 flame‑retardant safety grade.
3: What are the main application scenarios for ANS‑200?
A: It applies for small‑signal circuits, mobile power supplies, chargers, battery assemblies and communication‑device DC‑protection systems.
