H10MF熔断器座(10x38mm)
  贡福电子是专注电路保护元件开发、制造 、供应:保险丝(熔断器)汽车插片保险丝,汽车插片保险丝座,叉栓汽车保险丝,汽车保险丝盒.汽车熔断器,叉栓汽车保险丝座,保险丝座,汽车保险丝座,高压保险丝,直流熔断器,为您产品提供安全可靠的电路保护及周全的解决方案

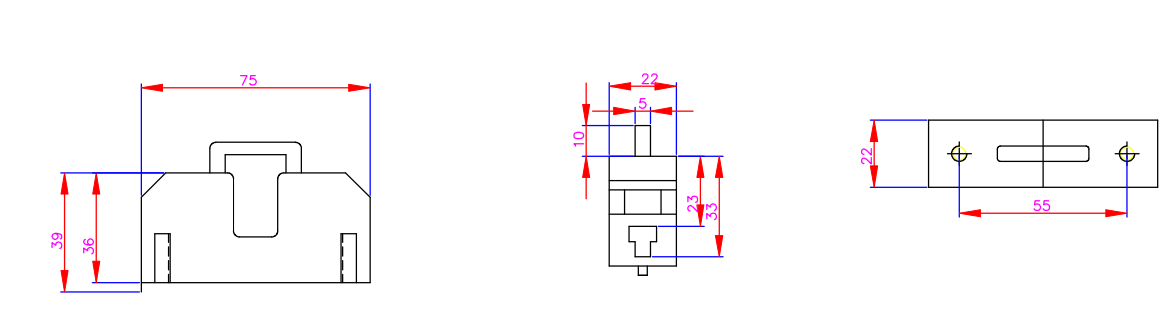

H10MF熔断器座(10x38mm)(图1)

1. Product model: H10MF fuse holder
2. Product application: 10x38 fuse (GFEFUSE® H10H matching fuse)
3. Rated voltage: 1000 VDC
4. Rated current: up to 50A (bolt), 30A (clamp)
5. Dielectric strength: > 1200 V
6. Torque: 2.3 n · m (20 in LBS)
7. Wire range: 14-7 AWG (1.6-8.4 ²)
8. Clip / terminal: tinned copper alloy (M5 screw)
9. Screw and external pressing plate: galvanized steel
10. Base: thermoplastic
11. Working temperature: up to 125 ℃
12. Material Flammability: UL 94 V-0
13.Base: PBT
14.Top cover: PC
